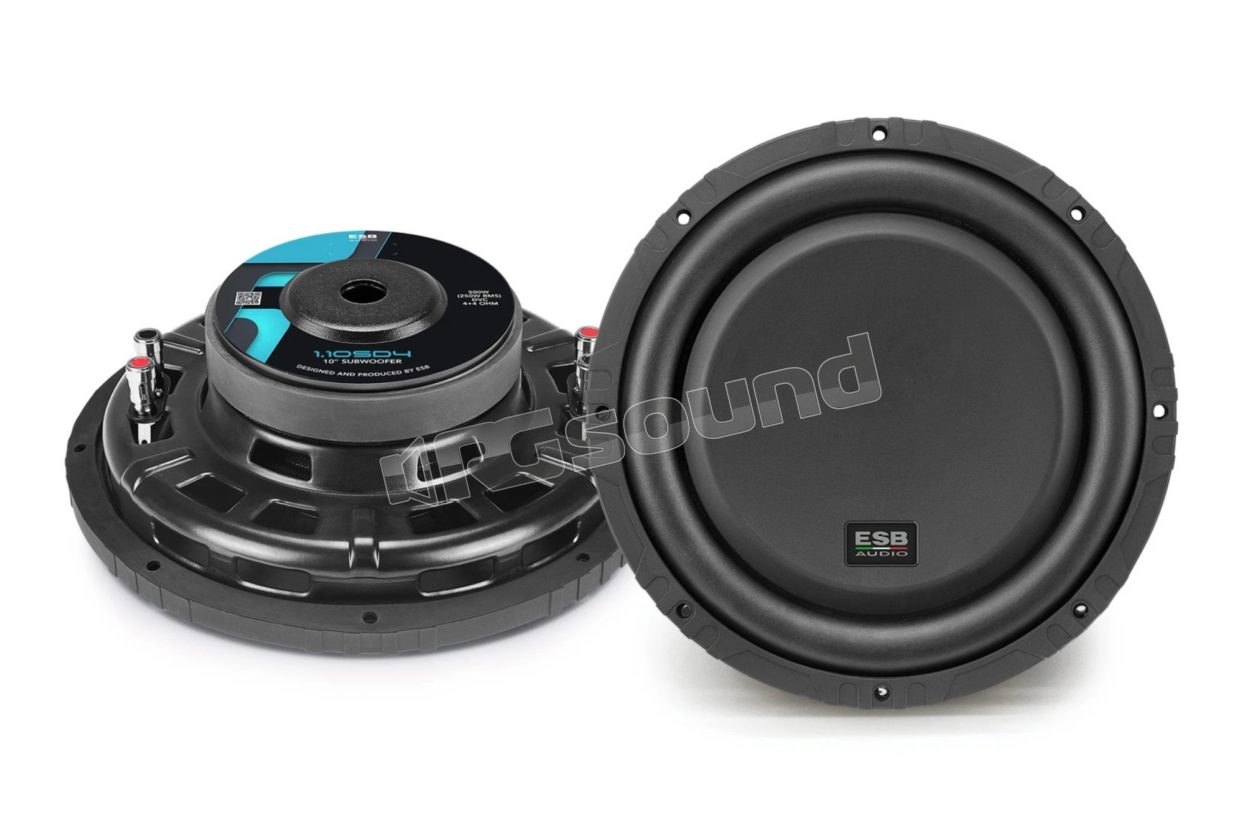

1.10SD4 10” slim subwoofer with dual 4 Ohm voice coils

ESB car audio
Your price:
€ 151,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
30 - 400 Hertz
Sensitivity
93 dB
Impedance
4 + 4 Ohm
Installation Depth
78 mm

ESB Car Audio 1.10SD4 Slim Subwoofer 10" dual coil 4 Ohm

The 1.10SD4 Subwoofers are part of the prestigious 1000 series, conceived and designed to offer ESB sound in affordable speakers without compromising on quality. The pressed paper cones for woofers, the large voice coils capable of handling high power and the tweeters with silk dome and neodymium magnet are just some of the features that make these uncompromising speakers.

1.10SD4 Features

  • 2"/51 mm voice coil
  • Long excursion rubber surround
  • 40.5 Oz ferrite magnet
  • Polystyrene cone

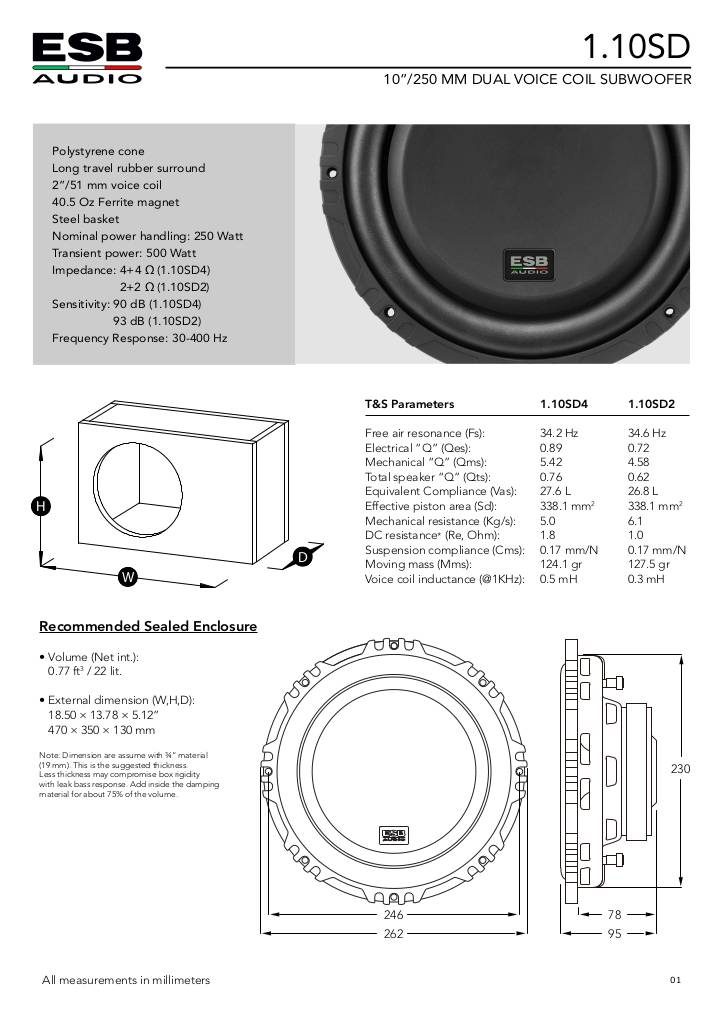

Scheda tecnica

n-20230922102524-1-10sd4.pdf

ESB Car Audio 1.10SD4 Technical Specifications

  • Speaker type: Component subwoofer
  • Nominal diameter: 10"/250 mm
  • Nominal impedance (Znom):
  • 1.10SD4: 4+4 Ohm / 1.10SD2: 2+2 Ohm
  • Continuous power: 250 W
  • Peak power: 500 W
  • Rec. Amplifier power: 100 - 250 W (RMS)
  • Voice coil resistance (Re): 1.8 / 1 Ohm
  • Voice coil diameter: 2"/51 mm
  • Free air resonance (Fs): 34.2 Hz / 34.6 Hz
  • Electrical "Q" (Qes): 0.89 / 0.72
  • Mechanical "Q" (Qms): 5.42 / 4.58
  • Total speaker "Q" (Qts): 0.76 / 0.62
  • Equivalent compliance (Vas): 27.6 / 26.8 lt
  • Moving mass (Mms): 124.1 / 127.5 g
  • Mechanical compliance (Cms): 0.17 mm/N
  • Mechanical resistance (Kg/s): 5.0 / 6.1
  • Effective piston area (Sd): 338.1 cmq
  • VC inductance (@1KHz): 0.5 / 0.3 mH
