02948 Compact powered subwoofer, Thunder series

Phonocar

Discontinued

Your price:
€ 319,00
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
200 Watt
Frequency Response
32 - 200 Hertz
Sensitivity
96 dB
Impedance
4 Ohm
Weight
14,1 Kg
Enclosure Size
69,5 x35,5x12,5 mm
Enclosure Type
Reflex Enclosure

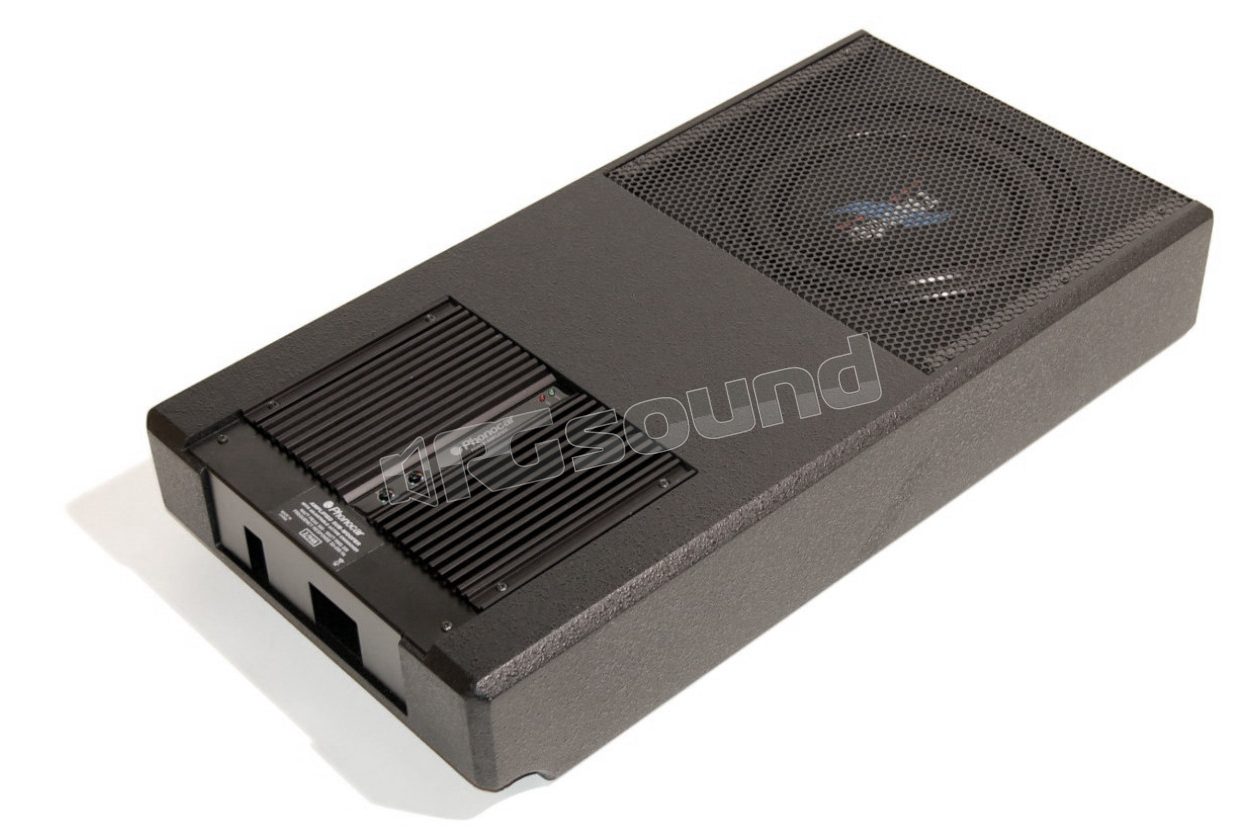

Compact powered subwoofer with 500w max in just 12.5 cm depth, to rationally complete the low frequency range of your audio system ... in the space of a small suitcase!

A solid structure with bass-reflex system in embossed black MDF houses a 250mm speaker from the Thunder series and a very efficient amplifier module, always made in Phonocar.

Its particular dimensions allow for easy installation in most trunks and also in many Cabriolets and Coupes behind the front seats, as well as in Campers, Boats and vans.


Technical Data:

- Power Watt Peak 500 - Rms 200
- Bass-reflex system
- Speaker Ø 250 mm Thunder
- Voice coil Ø 50mm
- Cone PP Double stratus
- Frequency response 32÷200 Hz
- Imput sensivity - High 0.5mV÷5V / Low >12V
- Amplifier Power Supply 14.4
- Signal noise ratio >96 dB
- Phase rotation 0/180°
- Active crossover adjustable 12 dB/Oct
- Section frequency 40÷200Hz
- Dimensions cm L 69.5 - H 12.5 - P 35.5
- Weight: Kg 14.1

To boost the bass in your system, without installing amplifiers, these subs are ideal. The structures are designed for every need: from positioning under or above the trunk loading surface, or under the seat.


Available in passive version 2/947

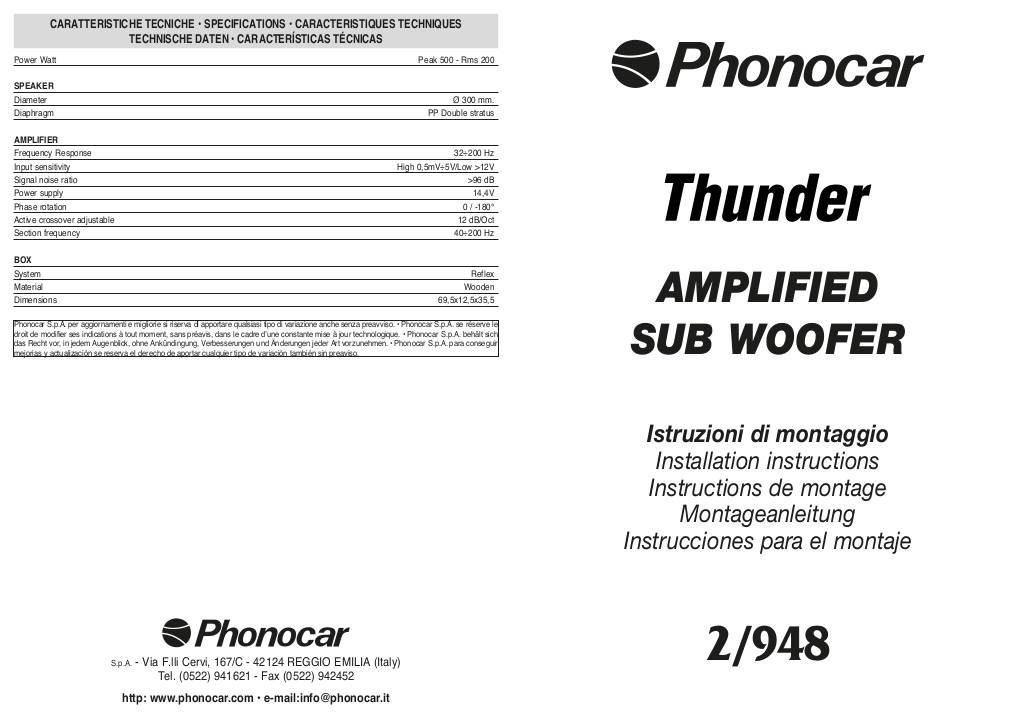

Manuale d'uso

20130904172112-fi-2-948.pdf
Discontinued
