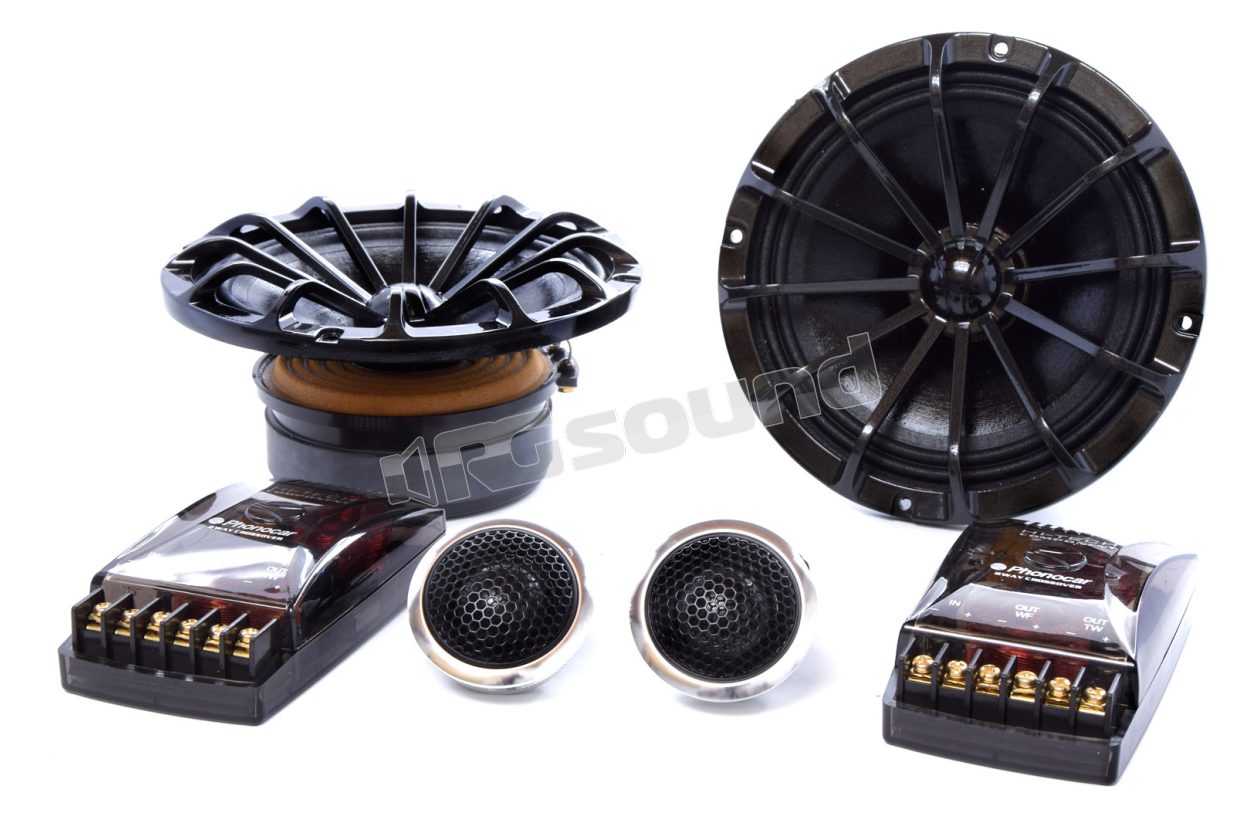

02807 2-way kit with basketless woofer

Phonocar

Discontinued

Your price:
€ 99,90
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
90 ÷ 20000 Hertz
Woofer Size
165 mm
Tweeter Size
28 millimetri
MAX Power
200 Watt
RMS Power
100 Watt
Sensitivity
95 dB
Impedance
4 Ohm
Woofer Material
Alluminio
Tweeter Material
Neodimio

2-way kit with special Phonocar Magico series midwoofers without basket.

These are extremely innovative products rich in new technical solutions; The 2/807 kit is unique in its kind as the midwoofers are basket-free, a characteristic that allows avoiding the reflection of frequencies that alters the cone response and consequently the sound quality. Another very important characteristic is the heat dissipation generated by the voice coil that is transmitted, through the membrane protection (grille) towards the outside (cold part), where heat dispersion becomes 10 times greater than traditional speakers.
A special glossy coating is applied to the two surfaces of the cone to dampen resonance.
The "sandwich" voice coil (inner and outer winding) allows better efficiency to the entire system.
They can be used both as woofers and as midbass, the important thing is to respect the technical data and therefore avoid going below 80-90Hz.
The special conformation of the woofers avoids the installation of protective grilles.

Exclusive Features:

Basket-free
Speakers unique in their kind as, basket-free, they avoid the reflection of frequencies that alter sound quality.

High Thermal performances
The "High Thermal Capacity" system consists of heat dissipation through the voice coil, through the membrane protection (grille) towards the outside (cold part), where heat dispersion becomes 10 times greater than traditional speakers.

Inner/outer winding voice coil
The "Sandwich" voice coil (inner/outer winding) allows better efficiency to the entire system thanks to greater magnetic/thermal efficiency..

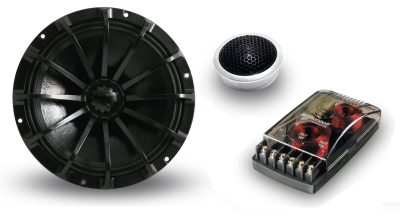

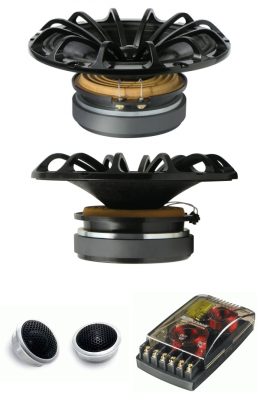

The 2/807 kit MAGICO Series consists of:

2x Midwoofer 2/755

2x Tweeter 2/428

2x Crossover 5/342

2/807 Specifications:

  • Power 100 RMS - 200 MAX
  • Frequency Response 90 ÷ 20000 Hz
  • Sensibility 95 dB
  • 2 Woofer Ø 165 mm
  • Basket Aluminium
  • Cone Cellulose
  • Voice coil "SANDWICH" 38 mm
  • 2 Tweeter Ø 46.5 mm
  • Magnet Neodymium
  • Voice coil 28 mm
  • Cone Silk dome
  • 2 Crossover 12/12 db/Oct
  • Packed 1 Set

Pair of midwoofers Pair of tweeters Pair of crossovers Mounting accessories User manual
