02428 28 mm

Phonocar

Discontinued

Your price:
€ 148,20
Price per pair (VAT included)
Type
Tweeter
Dome Size
28 mm
MAX Power
350 Watt
RMS Power
175 Watt
Frequency Response
1300 - 20000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Outer Diameter
46,5 mm
Installation Depth
18 mm
Tweeter Material
seta trattata

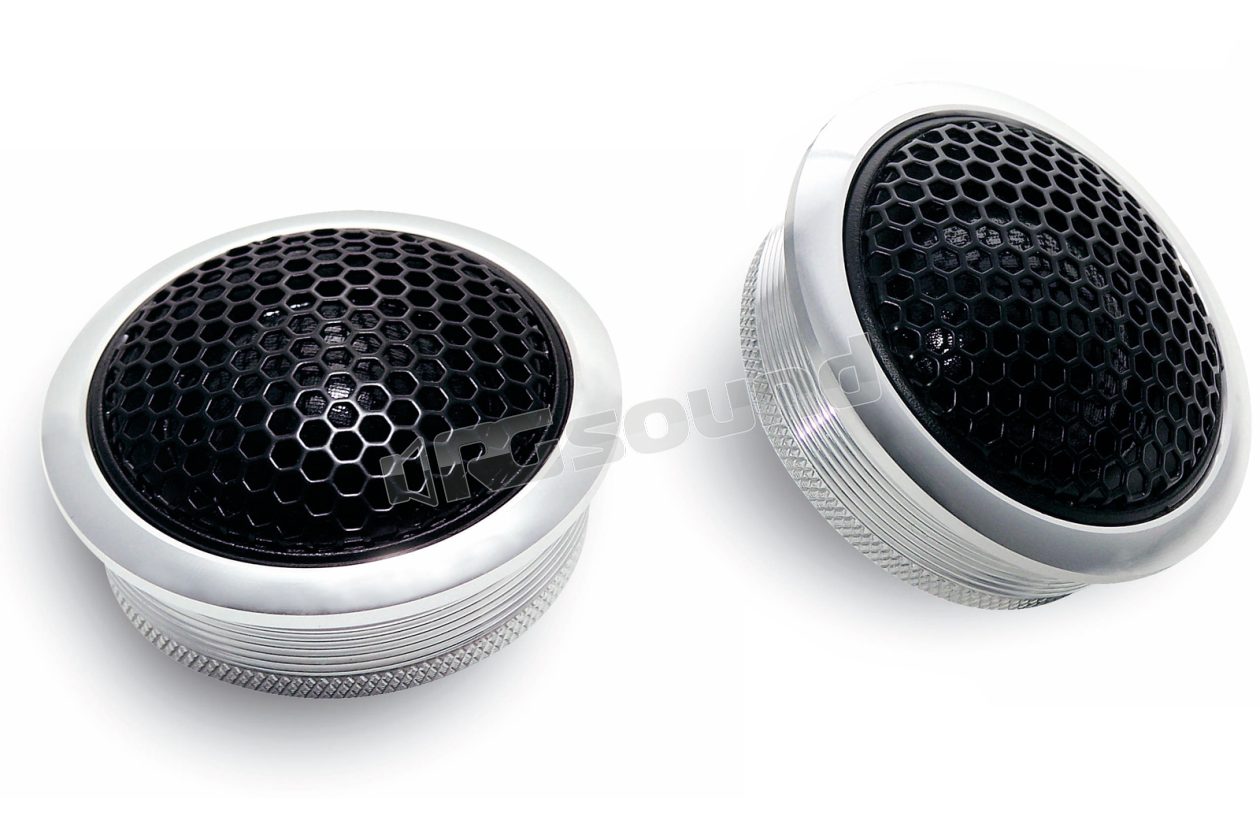

02428 - Dome Tweeter Hi Tech - with resonance chamber - 28 mm voice coil 350W

It is a speaker equipped with a silk membrane with a 28 mm voice coil and a resonance chamber, which allows extending the passband towards low frequencies compared to the normal frequency response of traditional tweeters.

Technical characteristics 02428:

  • Neodymium magnet
  • Max Power Watt 350 - Rms 175 with x-over 6.5 KHz -12 dB/Oct
  • Max 240 - Rms 120 with x-over 3.5 KHz -12 dB/Oct
  • Aluminum basket
  • Dimensions Ø46 H18
  • Voice Coil Ø 28 mm.
  • Frequency r. 1,300÷20,000 Hz
  • S.P.L. 1W/1m 90 dB
  • Impedance 4 Ohm


Conf. 2 pcs.

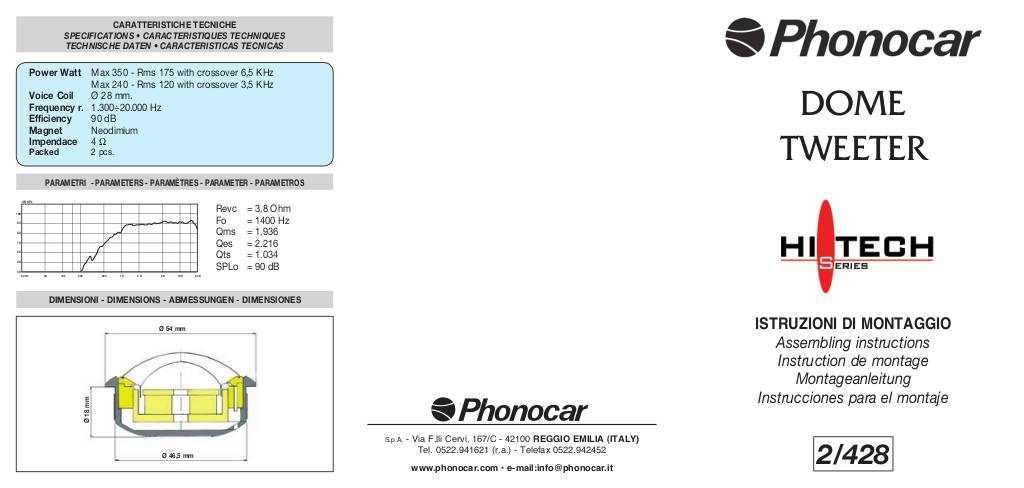

Scheda tecnica

20090925192213-fi-2-428.pdf
