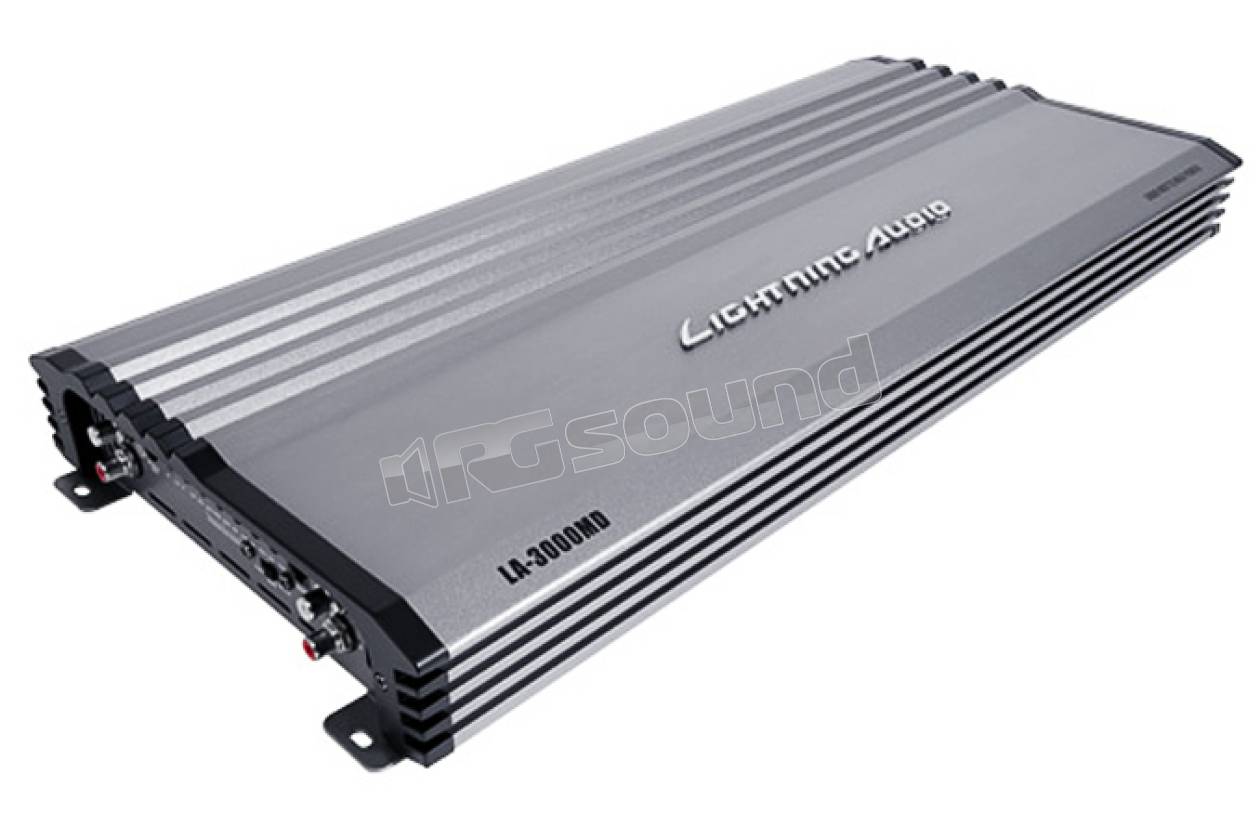

Lightning Audio LA-3000MD
SPECIFICHE
DESCRIZIONE
Lightning Audio LA-3000MD amplificatore monocanale Classe D per bassi deflagranti e nitidi. Potenza massima 3.000 Watt.
Caratteristiche LA-3000MD:
RCA Pass-Thru Outputs
Adjustble 12dB/octave Crossover
Subsonic Filter
Master / Slave Switch
Built-In Fusing
Balanced Inputs
Extended Bass Control (Freq/Q/Boost)
Remote Bass Control

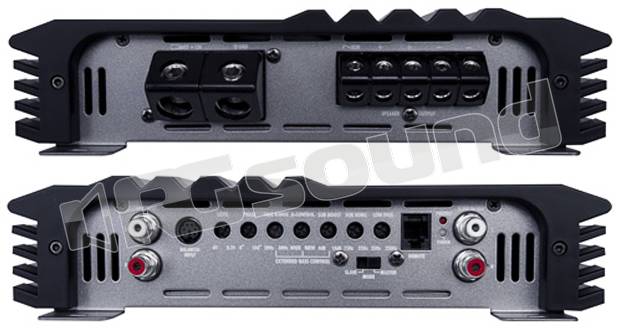

Massive power massive subwoofers! The Lightning Audio 3000MD is a 3,000 Watt Mono Digital amplifier designed for 2-ohm woofer loads like a pair of 4-Ohm woofers wired in parallel or four 4-Ohm DVC woofers wired in series/parallel. This amplifier features balanced/RCA inputs, phase, low pass crossover, bass boost with one band parametric EQ, subsonic filter, master/slave capability with RCA outputs for daisy-chaning another amplifier.
Specifiche LA-3000MD
| Number of Channels | 1 |
| Rated Power | 600 Watts x 1 @ 4-Ohms 1,000 Watts x 1 @ 2-Ohms 1,400 Watts x 1 @ 1-Ohm |
| Max Power | 1,500 Watts x 1 @ 4-Ohms 2,250 Watts x 1 @ 2-Ohms 3,000 Watts x 1 @ 1-Ohm |
| Bridgeable | No |
| Crossover Controls | 12dB/octave LP 35Hz to 250Hz Subsonic: 15Hz to 55Hz |
| Tone Controls | Frequency Range: 20Hz to 80Hz Q-Control: Wide to Narrow Bass Boost: 0dB to +18dB @ 45Hz Phase: 0° to 180° |
| Signal Input | Low-Level: 2 RCA (200mV to 6V) |
| Signal Output | (2) RCA (slave in/out) |
| Power Input Connector | Block connector w/ set screw |
| Power Wire Gauge | 4 AWG |
| Speaker Output Connector | Block connector w/ set screw |
| Speaker Wire Gauge | 8 AWG |
| Heat Sink Type | Extruded aluminum |
| Cooling | Convection |
| Remote Control | Bass Boost (included) w/ integral Power LED & Protect LED |
| Visual Indicators | Power Protect |
| Circuit Topology Class | Class D |
| THD at Rated Power | <1.0 |
| Frequency Response | 20Hz to 250Hz |
| Signal-to-Noise Ratio | >95 dB |
| Shipping Weight | 15 Lbs. (6.8 Kg.) |
| Dimensions | L15" x W9.4" x H2.3" 38.1cm x 23.876cm x 5.8cm |
