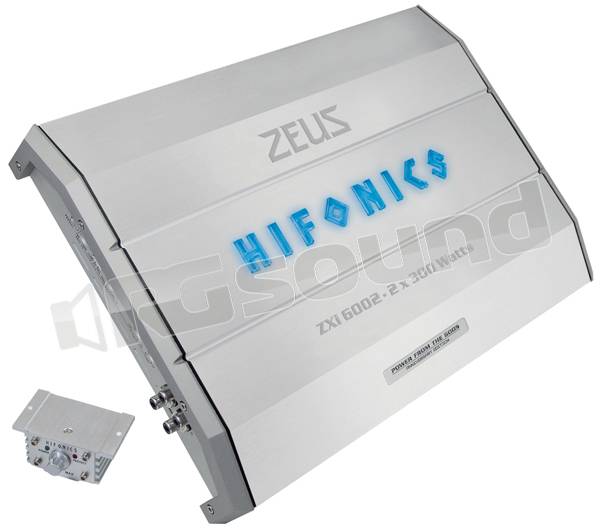

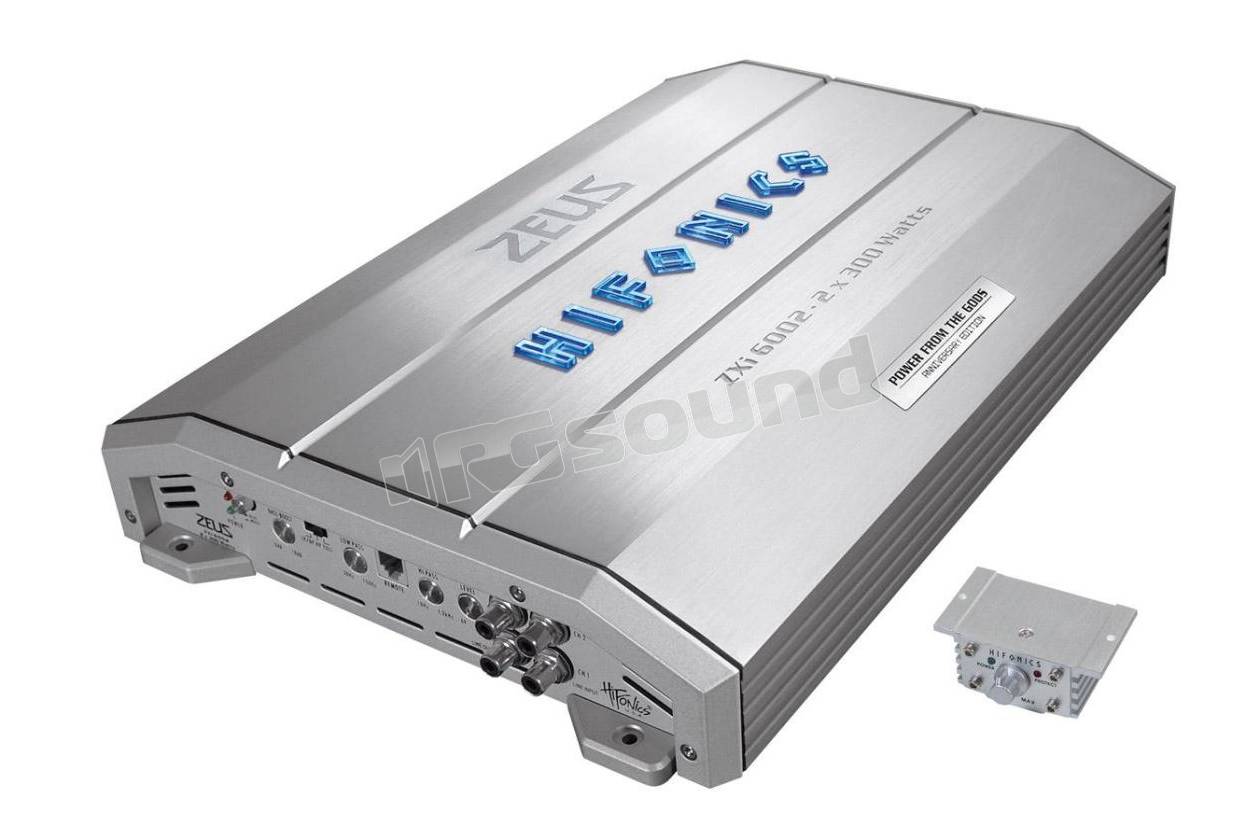

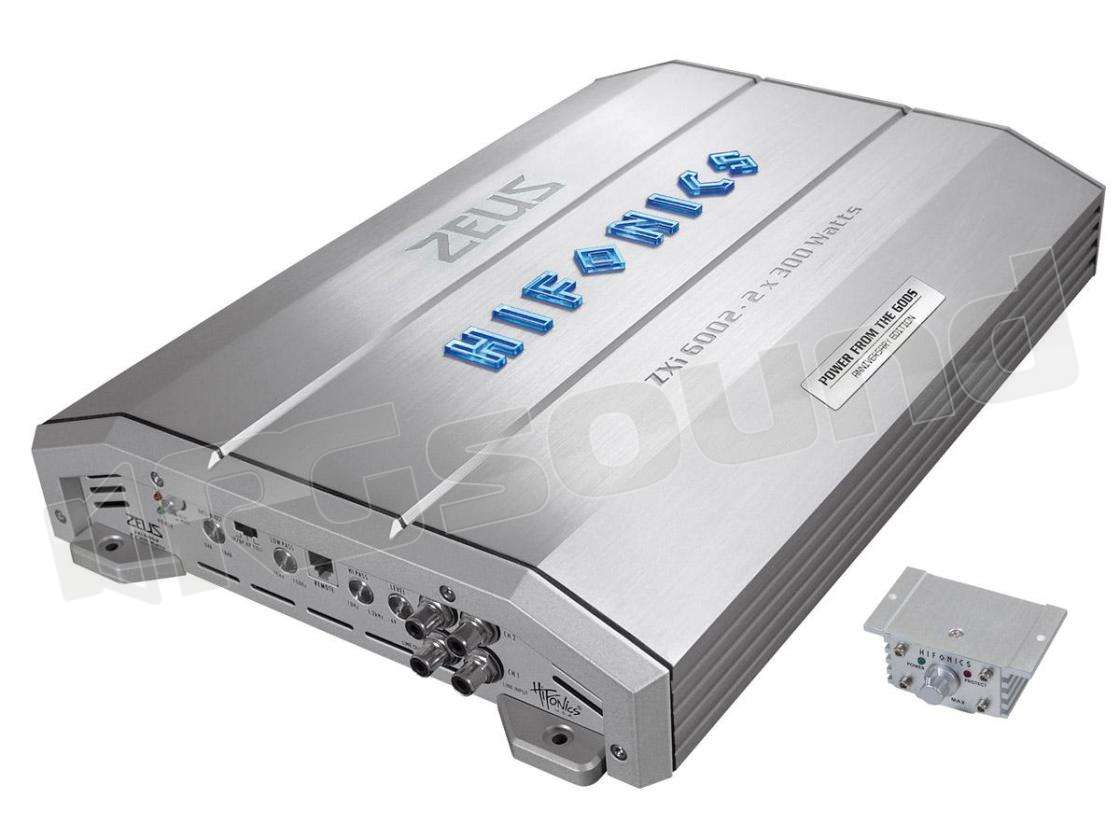

Amplificatore compatto a 2 canali HIFONICS serie ZEUS Z3
Principali caratteristiche ZXi6002 :
CHANNELS: 2
CIRCUIT CLASS: AB Analog
OUTPUT POWER RMS 13,8 V
2 x 150 Watts @ 4 Ohms
2 x 300 Watts @ 2 Ohms
1 x 600 Watts @ 4 Ohms mono bridged
OUTPUT POWER MAX. 13,8 V
2 x 300 Watts @ 4 Ohms
2 x 600 Watts @ 2 Ohms
1 x 1200 Watts @ 4 Ohms mono bridged
Frequency Range –3dB: 20Hz - 30 kHz
Damping Factor: > 200
Signal-to-Noise Ratio: > 90 dB
Channel Separation: > 60 dB
THD&N: 0,05%
Input Sensitivity: 6 - 0.2 V
Input Impedance: > 47 kOhm
Various Highpassfilter: 100 - 1200 Hz
Various Lowpassfilter: 30 - 150 Hz
Fuse Ratings: 1 x 60 A
Dimensions
Width x Height x Length:
260 x 60 x 360(390) mm
